Remove rear mid-range speaker
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING REAR WINDOW STORAGE SHELF AT FRONT .
- Refer to REMOVING THE LUGGAGE COMPARTMENT COVER .
- Refer to REMOVING C-PILLAR TRIM PANEL .
- Refer to REMOVING THE D-PILLAR TRIM PANEL .
- Refer to REMOVING REAR SEAT BENCH .
- Refer to REMOVING THE STRAP FITTING AT THE REAR .
- Refer to REMOVING THE SEAT BELT FINISHER STRIP .

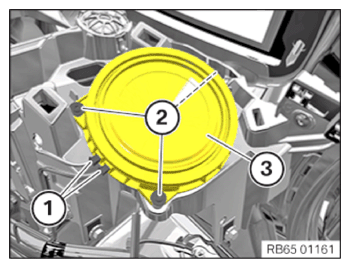

- Unlock plug connections (1) and disconnect.
- Loosen screws (2) .
- Guide the mid-range speaker (3) out and remove.
