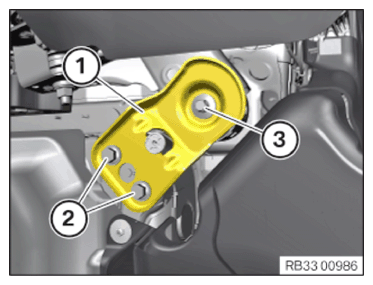

Installing rear thrust arm
- Replace screws (2) and (3).
Parts: Screws
- Position thrust arm (1).
- Screw in the screws (2) and (3).
- Tighten down screw (3).
TIGHTENING TORQUE SPECIFICATION
| Rear axle carrier to body | ||
| M12 Replace screws. |
tightening torque | 108 Nm |
- Tighten down screws (2).
TIGHTENING TORQUE SPECIFICATION
| Thrust arm on body | ||
| M10 Replace screws. |
Joining torque | 47 Nm |
| Angle of rotation | 45° | |
Follow-up work
- Refer to IF NEED BE, INSTALLING THE REAR DIFFUSER .
