Replacing wheel carrier

NOTE: Description is for left component only. Procedure on the right side is identical .

Preliminary work

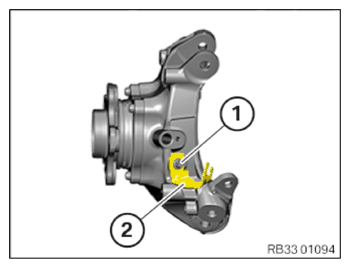

Loosen screw (1).
Remove the holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Use the special tool 2 472 903 or 5 A47 6E6 for unscrewing and tightening the spherical-collar screws.

Courtesy of BMW OF NORTH AMERICA, INC.

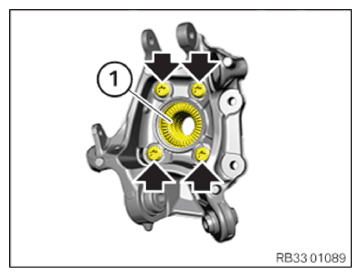

Unscrew the spherical-collar screws (arrows).
Remove wheel bearing (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Keep the connection of the wheel bearing on the wheel carrier clean and free of oil and grease.

Replace wheel carrier (2).
Parts: Wheel carrier
Recut the thread for the spherical-collar screws on the wheel bearing.

Courtesy of BMW OF NORTH AMERICA, INC.
Clean the contact surfaces (1) of the wheel carrier (2) and the wheel bearing (3).
Position wheel bearing (1) on the wheel carrier.
Replace the spherical-collar screws (arrows).
Parts: Spherical-collar screw
Tighten the spherical-collar screws (arrows) crosswise.

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATION

Wheel bearing to wheel carrier
M12 Replace spherical collar screws. Tighten the spherical-collar screws in crosswise sequence . The tightening sequence must be followed strictly and carried out on all spherical-collar screws at the same time!	1. Tightening torque	20 Nm
	2. Initial torque	140 Nm
	3. Unscrew all bolts .	max. 45°
	4. Tightening torque	120 Nm
	5. Angle of rotation	90°

TIGHTENING TORQUE SPECIFICATION

Holder on wheel carrier
Replace screw.	tightening torque	12 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
