Remove the control link
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISING THE VEHICLE WITH A VEHICLE LIFT .
NOTE:
TECHNICAL INFORMATION
PERFORM CHASSIS ALIGNMENT CHECK after installation.
PERFORM CHASSIS ALIGNMENT CHECK after installation.
Preliminary work
- Refer to REMOVING THE REAR LEFT WHEEL .
- Refer to REMOVING THE COVER OF THE CAMBER CONTROL ARM .

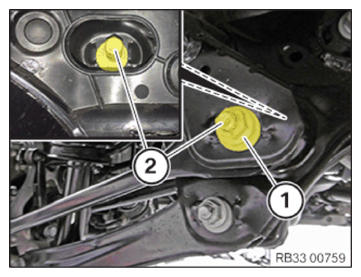

- Loosen nut (1).
- Remove the eccentric washer.
- Remove the eccentric screw (2).

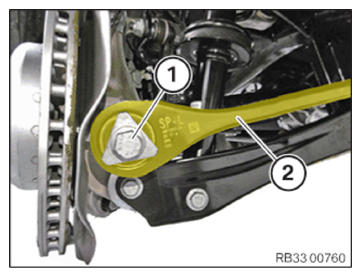

- Loosen screw (1).
- Remove the control link (2).
