Remove temperature sensor
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISING THE VEHICLE WITH A VEHICLE LIFT .
WARNING:
Hot exhaust system
.
Risk of burning!
Risk of burning!
- Any work must exclusively be carried out with an exhaust system that has cooled down.
NOTE:
RISK OF DAMAGE
Damage to rear differential .
Failure to comply with the oil specifications can result in serious damage to the rear differential .
Damage to rear differential .
Failure to comply with the oil specifications can result in serious damage to the rear differential .
- After completion of repair work, check the transmission oil level in the rear differential.
- Use only the BMW approved final drive transmission oil. See the Fluid Capacities tab for the selected vehicle.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

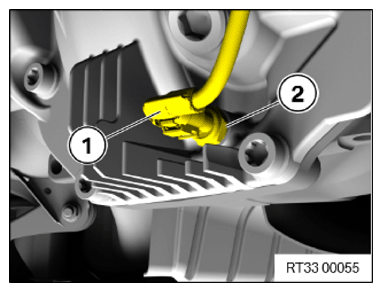

- Unlock plug connection (1) and disconnect.
- Release and remove temperature sensor (2).
