Remove torsion strut
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISING THE VEHICLE WITH A VEHICLE LIFT .
NOTE:
TECHNICAL INFORMATION
Driving without torsion strut is prohibited.
Driving without torsion strut is prohibited.
Preliminary work
- Refer to REMOVING THE FRONT LEFT WHEEL .
- Refer to REMOVING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER FRONT .
- Refer to REMOVING SIDE UNDERBODY PLANKING .
NOTE:
TECHNICAL INFORMATION
Driving without torsion strut is prohibited.
Driving without torsion strut is prohibited.
NOTE:
TECHNICAL INFORMATION
Secure component against falling.
Secure component against falling.

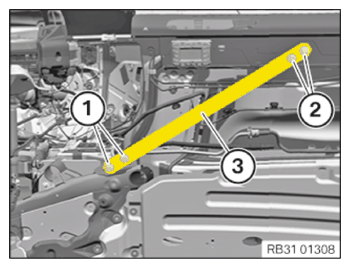

- Release screws (1) and (2).
- Remove torsion strut (3).
