Install the stiffening plate

NOTE: TECHNICAL INFORMATION

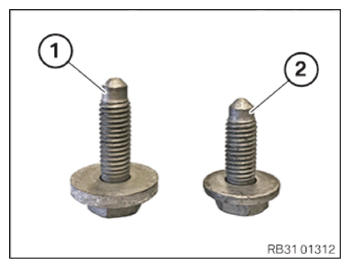

Pay attention to installation position of screws!
Different screw lengths.

Screw (1) (torsion strut on front subframe).
- M10x30
Screw (2) (thrust field on front subframe).
- M10x25
Courtesy of BMW OF NORTH AMERICA, INC.

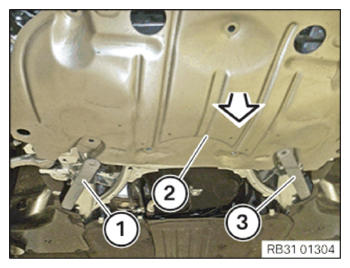

Guide in stiffening panel (2) on the left torsion strut (3) in the arrow direction.
Pull the torsion strut on the right (1) slightly downwards. While doing this, guide in stiffening panel (2) and position it on the front subframe.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the screws (1) and (3).
Parts: Screws
Screw in screws (1) to (3) by a few turns.
Tighten the screws (3).

TIGHTENING TORQUE SPECIFICATION

Thrust field to front axle support
M10x25 Replace screws. Screw in all the screws by several rotations	Tightening torque	56 Nm
	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATION

Torsion strut to front subframe/side member
M10x30 Replace screws. Screw in all the screws by several rotations .	Tightening torque	56 Nm
	Angle of rotation	90°

TIGHTENING TORQUE SPECIFICATION

Thrust field to reinforcement strut
M10x16	Tightening torque	56 Nm

Follow-up work
