Installing the lid of the brush module
Precondition
G08 Battery Electric Vehicle: Correct lid provided (see "REMOVING THE LID FROM THE BRUSH MODULE ")
NOTE:
RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.
NOTE:
RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
- Do not use any metal-cutting tools.
NOTE:
TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.
The sealing surfaces must be free of oil, grease and cleaning agents.

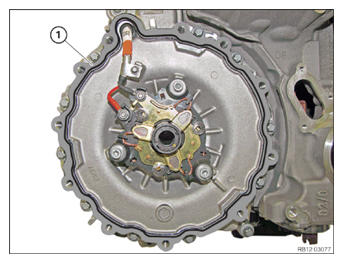

- Remove any coarse sealing residue on sealing surface (1) using scraper 0 495 102 (11 4 470) .
- Remove any fine sealing residue on sealing surface (1) using extractor 0 495 102 (11 4 470) .
- Clean the sealing surface (1) with brake cleaner.
CONSUMABLE SPECIFICATION
| Brake cleaner 2.0 | 500 ml, Spray can | 83192365214 |
| 20, Canister | 83192365215 |
- Dry sealing surface (1) with a clean, lint-free cleaning cloth.
NOTE:
TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.
The sealing surfaces must be free of oil, grease and cleaning agents.

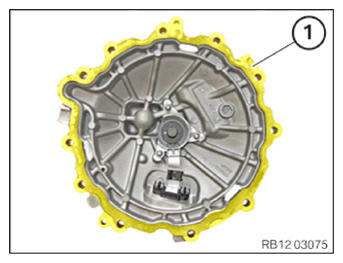

- Remove any coarse sealing residue on sealing surface (1) using scraper 0 495 102 (11 4 470) .
- Remove any fine sealing residue on sealing surface (1) using extractor 0 495 102 (11 4 470) .
- Clean the sealing surface (1) with brake cleaner.
CONSUMABLE SPECIFICATION
| Brake cleaner 2.0 | 500 ml, Spray can | 83192365214 |
| 20, Canister | 83192365215 |
- Dry the sealing surface (1) with a clean, lint-free cleaning cloth.
- Have the special tool 2 469 803 ready.
NOTE:
TECHNICAL INFORMATION
For additional information see: 11 00... OVERVIEW OF CONSUMABLES IN APPLICABLE BMW PARTS CATALOGUE .
For additional information see: 11 00... OVERVIEW OF CONSUMABLES IN APPLICABLE BMW PARTS CATALOGUE .
- Position the sealing compound (1) as shown on the special tool 2 469 803
.
Parts: Sealant
NOTE:
TECHNICAL INFORMATION
The processing time of the liquid sealing compound can be at a maximum of 10 min.
Commissioning of the assembly is not possible until 25 minutes after the processing time.
Non-observance can lead to leaks in the assembly.
The processing time of the liquid sealing compound can be at a maximum of 10 min.
Commissioning of the assembly is not possible until 25 minutes after the processing time.
Non-observance can lead to leaks in the assembly.

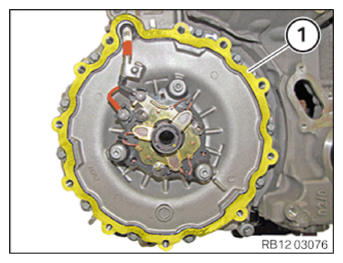

- Apply sealing bead (1) with the sealing compound in the marked area.
SEALING COMPOUND SPECIFICATION
| Loctite 5970 liquid sealing compound Processing time <10 minutes at room temperature | 50 ml, Cartridge | 83190404517 |

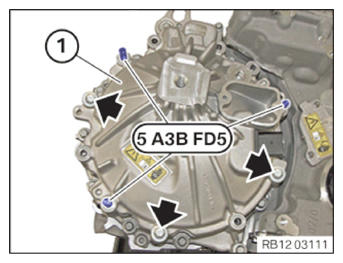

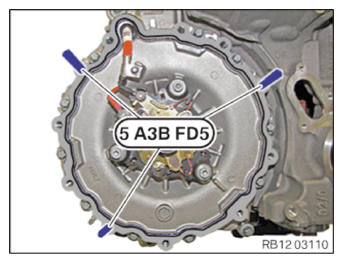

- Screw in centering pins 5 A3B FD5
.
- Mount lid (1).
- Turn the screws (arrows) until hand-tight.
- Remove the centering pins 5 A3B FD5
.

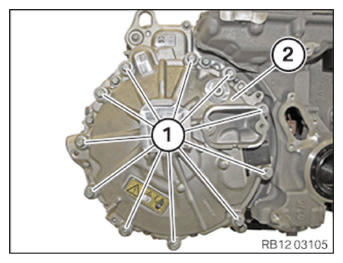

- Turn screws (1) until hand-tight.
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATION
| Brush module lid to housing | |
|---|---|
| M8 | 15 Nm |
| 90° | |
