Removing the pressure compensation element from the lid of the brush compartment
Removing the pressure compensation element from the lid of the brush compartment
Precondition
Second person available for the entire duration of the repair
All special tools clean and free of grease
Clean workstation
Clean hands
NOTE:
A second person must be available to the person performing the task for the entire duration
of the repair process.
The second person has the following tasks:
Check that the bonding surfaces are cleaned properly.
Check of correct installation of the pressure compensation element.
Check that the special tools are handled as prescribed.
Check of correct repair in accordance with the repair instructions.
The second person has the following tasks:
Check that the bonding surfaces are cleaned properly.
Check of correct installation of the pressure compensation element.
Check that the special tools are handled as prescribed.
Check of correct repair in accordance with the repair instructions.

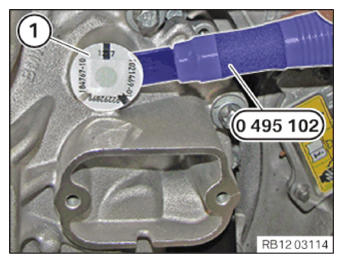

- Remove the pressure compensation element (1) using scraper 0 495 102 (11 4 470) .
NOTE:
TECHNICAL INFORMATION
The bonding surface must be free of adhesive residue, greases and cleaning agents.
The bonding surface must be free of adhesive residue, greases and cleaning agents.

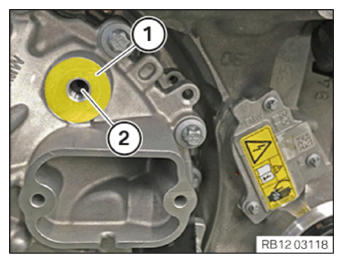

- Remove any coarse residue of the adhesive from bonding surface (1) using scraper 0 495 102 (11 4 470).
- Vacuum opening (2).
- Remove any fine residue of the adhesive from bonding surface (1) with the cleaning agent.
CONSUMABLE SPECIFICATION
| Safety cleaning agent 2.0 | 500 ml, Spray can | 83192362037 |
| 20 l, Canister | 83192362038 | |
| 60 l, Canister | 83192362040 |
- Dry bonding surface (1) with a clean, lint-free cleaning cloth.
- Use the two person principle to check bonding surface (1) for damage (e.g. scratches).
- If bonding surface (1) is damaged, replace the lid of the brush compartment.
12 37 920 Replacing the lid for brush module (drive unit removed)
Removing the pressure compensation element from the lid of the brush compartment
Precondition
Second person available for the entire duration of the repair
All special tools clean and free of grease
Clean workstation
Clean hands
NOTE:
A second person must be available to the person performing the task for the entire duration
of the repair process.
The second person has the following tasks:
Check that the bonding surfaces are cleaned properly.
Check of correct installation of the pressure compensation element.
Check that the special tools are handled as prescribed.
Check of correct repair in accordance with the repair instructions.
The second person has the following tasks:
Check that the bonding surfaces are cleaned properly.
Check of correct installation of the pressure compensation element.
Check that the special tools are handled as prescribed.
Check of correct repair in accordance with the repair instructions.

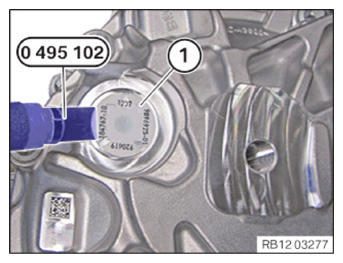

- Remove the pressure compensation element (1) using scraper 0 495 102 (11 4 470) .
NOTE:
TECHNICAL INFORMATION
The bonding surface must be free of adhesive residue, greases and cleaning agents.
The bonding surface must be free of adhesive residue, greases and cleaning agents.

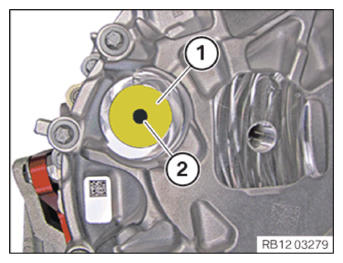

- Remove any coarse residue of the adhesive from bonding surface (1) using scraper 0 495 102 (11 4 470).
- Vacuum opening (2).
- Remove any fine residue of the adhesive from bonding surface (1) with the cleaning agent.
CONSUMABLE SPECIFICATION
| Safety cleaning agent 2.0 | 500 ml, Spray can | 83192362037 |
| 20 l, Canister | 83192362038 | |
| 60 l, Canister | 83192362040 |
- Dry bonding surface (1) with a clean, lint-free cleaning cloth.
- Use the two person principle to check bonding surface (1) for damage (e.g. scratches).
- If bonding surface (1) is damaged, replace the lid of the brush compartment.
