Cleaning the sealing surfaces (installation of the removed cover of the EME)
NOTE:
RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.
NOTE:
RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
- Do not use any metal-cutting tools.
NOTE:
TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.
The sealing surfaces must be free of oil, grease and cleaning agents.
NOTE:
TECHNICAL INFORMATION
The inside of the lid or the interior of the housing must be free of sealing residues and other foreign bodies.
The inside of the lid or the interior of the housing must be free of sealing residues and other foreign bodies.

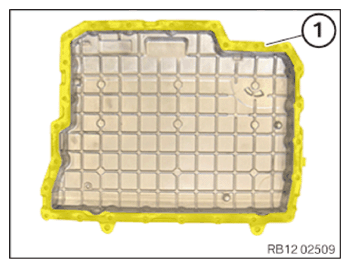

- Remove any coarse sealing residue on sealing surface (1) using scraper 0 495 102 (11 4 470) .
- Remove any fine sealing residue on sealing surface (1) using extractor 0 495 102 (11 4 470) .
- Remove the sealing residue and other foreign bodies from the inside of the lid through suction completely
.
Do not clean the sealing surface (1) with the brake cleaner until right before installing the lid.
NOTE:
TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.
The sealing surfaces must be free of oil, grease and cleaning agents.
NOTE:
TECHNICAL INFORMATION
The inside of the lid or the interior of the housing must be free of sealing residues and other foreign bodies.
The inside of the lid or the interior of the housing must be free of sealing residues and other foreign bodies.

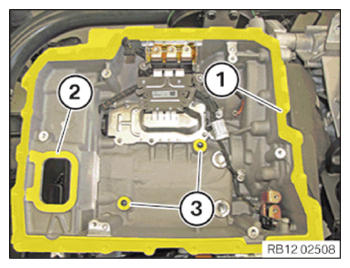

- Seal openings (3) with the plugs 0 494 179 (32 1 270).
- Remove any coarse sealing residue on sealing surface (1) using scraper 0 495 102 (11 4 470) .
- Remove any fine sealing residue on sealing surface (1) using extractor 0 495 102 (11 4 470) .
- Remove the sealing residue and other foreign bodies from the interior of the housing through suction completely .
- Remove plugs 0 494 179 (32 1 270) from openings (3) .
- Clean sealing surfaces (2)
and (3)
with the brake cleaner.
Do not clean the sealing surface (1) with the brake cleaner until right before installing the lid.
CONSUMABLE SPECIFICATION
| Brake cleaner 2.0 | 500 ml, Spray can | 83192365214 |
| 20, Canister | 83192365215 |
- Dry the sealing surfaces (2) and (3) with a clean, lint-free cleaning cloth.
