Tightening the screw connection on the wheel carrier

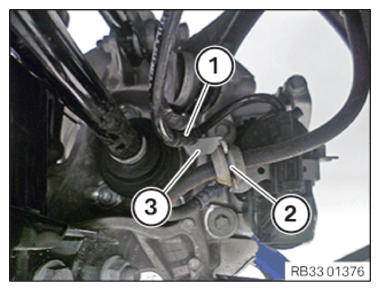

Detach the cable (1) for the electromechanical parking brake and brake hose (2) from the holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .

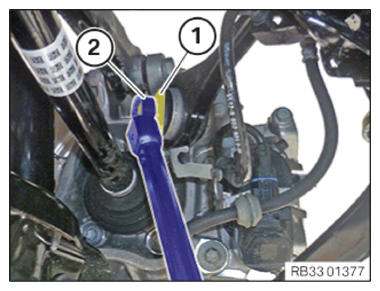

Release screw (1) using standard tool (2) with a turn and tighten it.
Standard tool: Ring insert tool for double hexagon head

Ring insertion tool for external double hexagon

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Ring insertion tool for external double hexagon

TIGHTENING TORQUE SPECIFICATION

Control arm to wheel carrier
M14 Replace screw. Tighten in normal position.	Joining torque	165 Nm
	Angle of rotation	90°

Fasten the cable (1) for the electromechanical parking brake and brake hose (2) on the holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.
