Tightening the screw connection of the shock absorber on the camber control arm
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
Tighten the screw connection in the NORMAL POSITION .

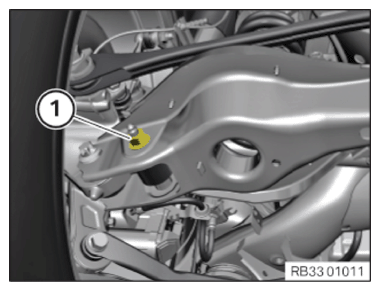

- Release nut (1) and tighten it by a turn. Provide counter support to the screw in the process.
TIGHTENING TORQUE SPECIFICATION
| Shock absorber to camber control arm | ||
| M12 Replace nut and screw. Tighten in normal position. |
Joining torque | 100 Nm |
| Angle of rotation | 90° | |
