Tightening the screw connection of the control link on the wheel carrier
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
Tighten the screw connection in the NORMAL POSITION .

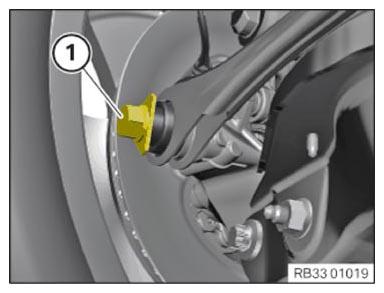

- Slacken screw (1) by one turn.
- Tighten the screw (1) with the standard tool.

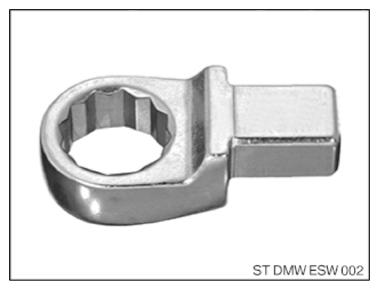

Standard tool: Ring insert tool for double hexagon head
Ring insertion tool for external double hexagon
Ring insertion tool for external double hexagon
TIGHTENING TORQUE SPECIFICATION
| Track arm to wheel carrier | ||
| M12 Replace screw. Tighten in normal position. |
Joining torque | 100 Nm |
| Angle of rotation | 90° | |
