Tightening the control link on the rear axle support in normal position

NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .

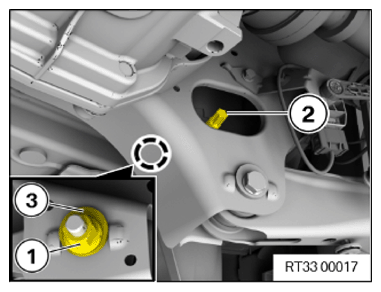

• Release nut (1) one revolution.
• Position the eccentric disc (3) correctly.
• Use the eccentric screw (2) as a counter support and tighten the nut (1) to NORMAL POSITION .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATION

Control link to rear axle support
M12 Replace the eccentric screw, eccentric washer and nut. Tighten in NORMAL POSITION .	tightening torque	108 Nm
