Removing the spindle drive of the left and right tailgate
CAUTION:
Shutting hood or trunk lid.
Injury hazard!
Injury hazard!
- Support hood/trunk lid in fully open position with the aid of a suitable device.
NOTE:
RISK OF DAMAGE
Damage to the spindle drive.
If the trunk lid is not opened completely, the spindle drive may be damaged.
Damage to the spindle drive.
If the trunk lid is not opened completely, the spindle drive may be damaged.
- Remove and install the spindle drive only when the Trunk lid is open to the maximum extent.
NOTE:
TECHNICAL INFORMATION
The notes on the disassembly and installation of ball sockets with clamps are the basis for these repair instructions and must be observed without fail.
For additional information see: REMOVING/INSTALLING HOOD BALL SOCKETS WITH CLIP .
The notes on the disassembly and installation of ball sockets with clamps are the basis for these repair instructions and must be observed without fail.
For additional information see: REMOVING/INSTALLING HOOD BALL SOCKETS WITH CLIP .
NOTE:
Description is for left component only. Procedure on the right side is identical.

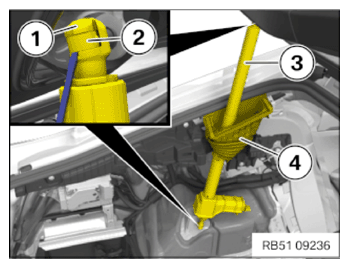

Removing spindle drive of the tailgate
- Unlock plug connection (1) and disconnect.
- Release the funnel (2) with the clamps (3).
- Guide the funnel (2) out under the sealing lip of the tailgate seal.
- Before removing the spindle drive (3), make sure that the two ball sockets (1) are relieved.
- Lift the lower power clamp (2) a little with a screwdriver.
- Detach the lower ball socket (1) of the spindle drive (3) from the body.
- Lift the upper power clamp (2) a little with a screwdriver.
- Detach the upper ball socket (1) of the spindle drive (3) from the tailgate.
- Remove the spindle drive (3) along with the funnel (4).
