Remove rear window
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
NOTE:
TECHNICAL INFORMATION
The following procedure forms the basis for these repair instructions and must be observed without fail.
For additional information see: GENERAL PROCEDURE FOR THE DISASSEMBLY AND INSTALLATION OF BONDED WINDOW GLASS .
The following procedure forms the basis for these repair instructions and must be observed without fail.
For additional information see: GENERAL PROCEDURE FOR THE DISASSEMBLY AND INSTALLATION OF BONDED WINDOW GLASS .
NOTE:
TECHNICAL INFORMATION
Perform window removal using the "spider".
For additional information see: REMOVING WINDOWS WITH A "SPIDER" .
Perform window removal using the "spider".
For additional information see: REMOVING WINDOWS WITH A "SPIDER" .
Remove rear window

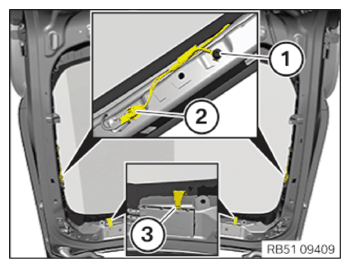

- Loosen screws (1).
- Unlock and disconnect plug connections (2) and unclip them from the cable brackets.
- Unlock plug connections (3) and disconnect.
- Secure cable to rear window with adhesive tape.
- Tape off body in area of piercing point with fabric adhesive tape.

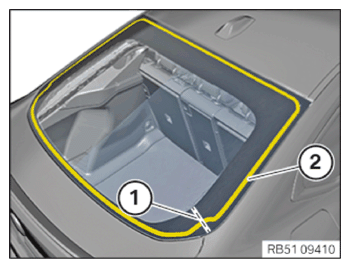

- Push the thread along the line (1) fro the inside through the adhesive bead (2).
- Cut out the rear window using the spider.
