Installing the sun visors and counter support on the left and right

Install the sun visor and the counter support

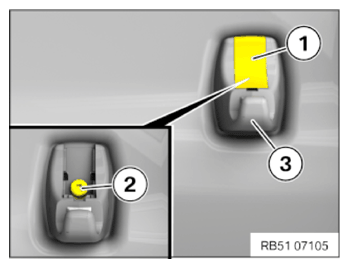

• Check the guides (1) on the cover of the counter support for damage, replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the counter support (3) in the headlining correctly.
• Tighten down screw (2).
  TIGHTENING TORQUE SPECIFICATION



  Counter support to mount
  Sheet metal screw 4.2x13	tightening torque	1.9 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in the cover (1).
• Connect and lock corresponding connectors.
• Install the sun visor.
• Tighten down screw (2).
  TIGHTENING TORQUE SPECIFICATION



  Sun visor to body
  Screw	tightening torque	3.3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Close the cover (1).
• Attach the sun visor (1) on the counter support (2).

Courtesy of BMW OF NORTH AMERICA, INC.
