Installing the left and right antenna amplifier (AM, FM1)
NOTE:
Description is for left component only. Procedure on the right side is identical.

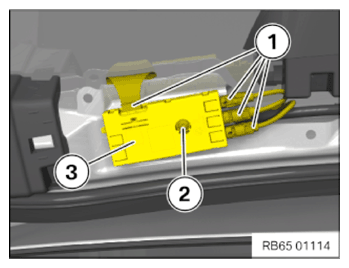

Install the antenna amplifier (AM, FM1)
- Position antenna amplifier (3).
- Tighten down screw (2).
TIGHTENING TORQUE SPECIFICATION
| Antenna amplifier on trunk lid | ||
| M5x16 screw | Tightening torque | 3 Nm |
- Connect all connectors (1) and lock.
