Installing the left and right B-pillar trim panel partially

NOTE: Description is for left component only. Procedure on the right side is identical.

Partially installing the B-pillar trim panel

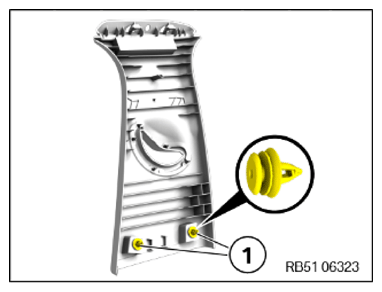

Check the clips (1) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

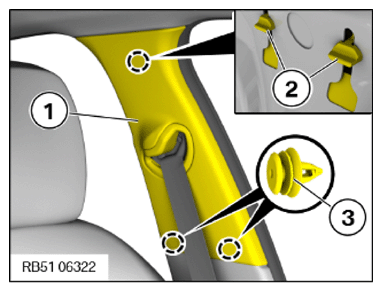

Feed the B-pillar trim panel (1) into the guides (2) and under the lip of edge protections at front and rear.
Clip the B-pillar trim panel in (1) with the clips (3).

Courtesy of BMW OF NORTH AMERICA, INC.
