Installing front brake disc
Installing front brake disc

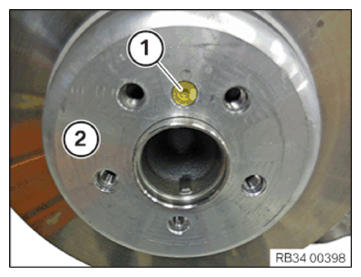

Position brake disc
(2)
on wheel hub.
Replace the screw
(1)
.
Parts:
Screw
Position and tighten the screw
(1)
.
TIGHTENING TORQUE SPECIFICATION
Brake disc to front wheel hub
M8 Replace screw.
Tightening torque
16 Nm
