Install right door sill trim panel

NOTE: RISK OF DAMAGE
Mechanical effects.
Paint damage.

Mask those working areas at risk with yellow plastic adhesive tape.
Remove and install heavy or bulky components with the aid of another person/other persons.

NOTE: Description is for left component only. Procedure on the right side is identical.

Install the inner section of the door sill trim panel

Check

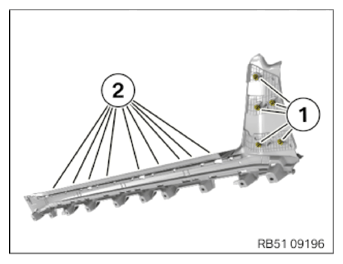

Check the clips (1) at the inner section of the door sill trim panel for damage, replace if necessary.
Check the detents (2) at the inner section of the door sill trim panel for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Detents (2) are damaged.

Measure

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

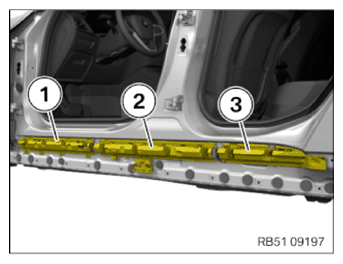

Check the retaining strips (1),(2) and (3) for damage, replace the retaining strips if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

Guide in and position the inner section of the door sill trim panel with a support person.

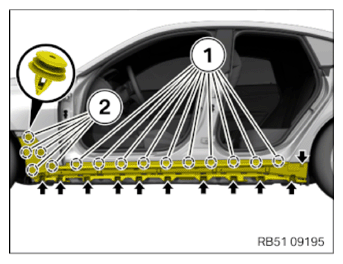

Clip in the inner section of the door sill trim panel with the clips (2).
Clip in the inner section of the door sill trim panel toward the rear continuously with the detents (1).
Clip in the clips (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

Install outer section of the door sill trim panel

Check

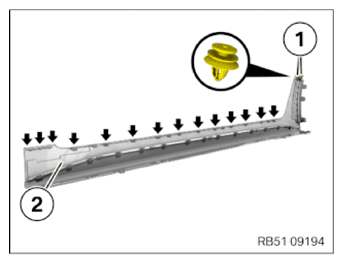

Check the clips (1) of the trim at the door sill trim panel (2) for damage, replace if necessary.
Check the detents (arrows) of the trim at the door sill trim panel (2) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Detents (arrows) are damaged.

Measure

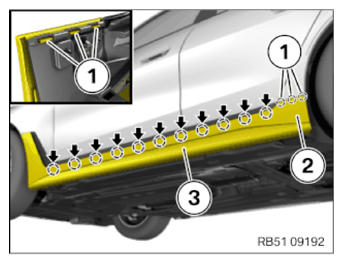

Fit the trim at the door sill trim panel (1) with the outer section of the door sill trim panel (2); work with a support person for this.

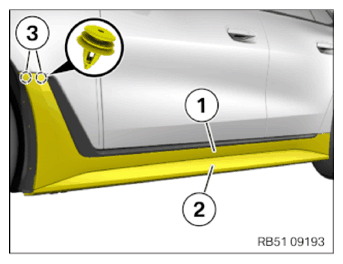

Clip in the trim at the door sill trim panel (1) with the outer section of the door sill trim panel (2) into the clips (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Clip in the trim at the door sill trim panel (2) with the outer section of the door sill trim panel (3) toward the rear in sequence with the detents (arrows).
Clip in the detents (1).

Courtesy of BMW OF NORTH AMERICA, INC.

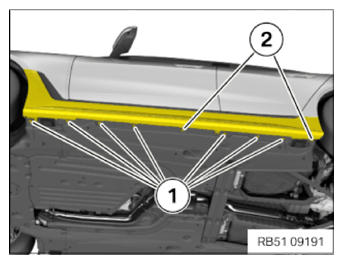

Tighten nuts (2) and screws (1).

TIGHTENING TORQUE SPECIFICATION

Courtesy of BMW OF NORTH AMERICA, INC.
