Install D-pillar trim panel on left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing D-pillar trim panel
Check

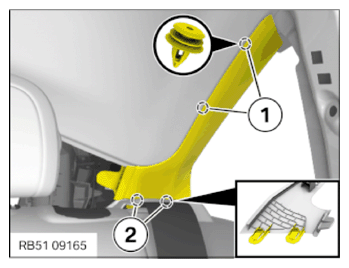

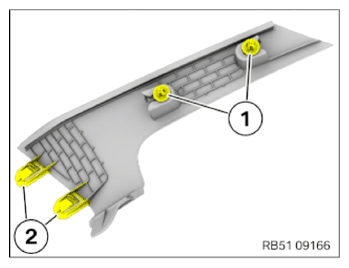

- Check the clips (1) at the D-pillar trim panel for damage.
- Check the detents (2) on the D-pillar trim panel for damage.
Result
» The detents (2) or the clips (1) are damaged.
Measure
- Replace the clips (1) or the D-pillar trim panel.
- Mount the D-pillar trim panel and clip in with the detents (2).
- Clip in the D-pillar trim panel with the clips (1).
