Guiding the right output shaft out of the rear axle differential

Pulling the output shaft out from the rear axle differential

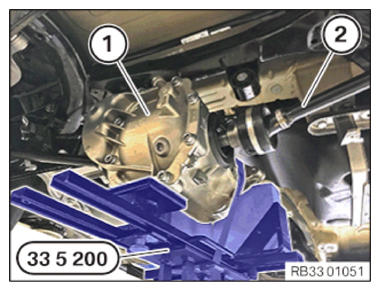

• Turn the rear axle differential (1) to the left with the special tool 0 496 009 (33 5 200)  . Thereby, pull out the output shaft (2).
• Bind the output shaft firmly (2).
