Fastening front brake caliper

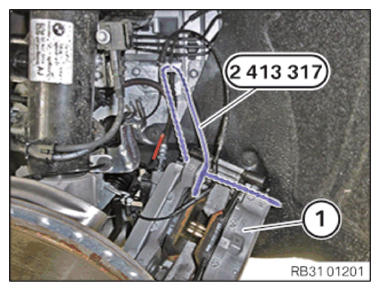

Release the special tool 2 413 317 from the brake caliper (1) and remove it.
The brake caliper (1) must not hang on the brake hose.

Courtesy of BMW OF NORTH AMERICA, INC.

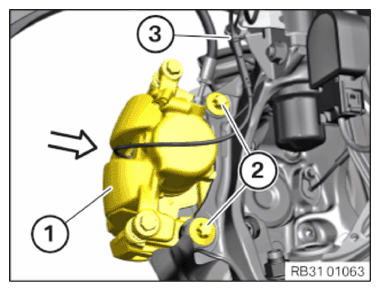

Position the brake caliper (1) in arrow direction on the swivel bearing.
Replace screws (2) .
Parts: Screws

Tighten the screws (2) .

TIGHTENING TORQUE SPECIFICATION

Brake caliper/brake anchor plate at front swivel bearing
M12 Replace screw.	Tightening torque	130 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Only perform the operation on the left side.
