Connecting the cable of the vertical dynamic platform (VDP) to the spring strut

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

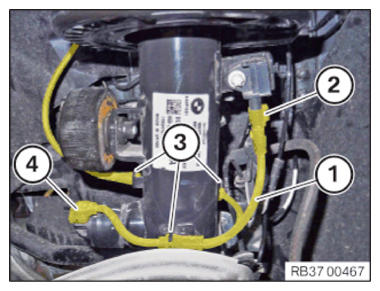

• Position the cable (1) and fasten on the holders (3).
• Connect and lock the connector (4) to the spring strut.
• Connect and lock the connector (2) on the vertical acceleration sensor.

Courtesy of BMW OF NORTH AMERICA, INC.
