Check/Top up oil level in the rear axle differential (M Sport differential)
CAUTION:
Contact with hazardous substances.
Health impairment.
Health impairment.
- Note and comply with the Safety Instructions on the containers and the instructions on the manufacturer's safety data sheet.
- Conduct all work in appropriate personal protective equipment only.
CAUTION:
Acid combustions may result from skin contact with oil or inhaling oil vapors.
Risk of acid burns from contact with oil!
Risk of acid burns from contact with oil!
- Wear safety goggles and hand protection.
- Ensure adequate ventilation.
NOTE:
RISK OF DAMAGE
Damage to rear axle differential.
Failure to comply with the oil specifications can result in serious damage to the rear axle differential.
Damage to rear axle differential.
Failure to comply with the oil specifications can result in serious damage to the rear axle differential.
- Only use approved oil in the rear axle differential.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
NOTE:
TECHNICAL INFORMATION
It is imperative to ensure that there is no air in the hose when topping up a defined (measured) oil quantity.
It is imperative to ensure that there is no air in the hose when topping up a defined (measured) oil quantity.
- Use the special tool 2 460 340 to top up.
- When topping up a defined (measured) oil quantity, first fill the hose (1) with oil. To do this, attach an adapter (2).
Supplement the rear differential fluid change/oil level with oil gun
NOTE:
TECHNICAL INFORMATION
The training video schematically shows the method for changing the oil in the rear axle differential using the oil sprayer special tool.
The training video is not a replacement for the repair instructions.
The training video is not subject to the update service.
We can assume no liability for printing errors or inaccuracies in this service information and reserve the right to introduce technical modifications at any time.
The training video schematically shows the method for changing the oil in the rear axle differential using the oil sprayer special tool.
The training video is not a replacement for the repair instructions.
The training video is not subject to the update service.
We can assume no liability for printing errors or inaccuracies in this service information and reserve the right to introduce technical modifications at any time.
Refer to:
multimedia:A supplement to the article is available.
- Follow repair instructions!

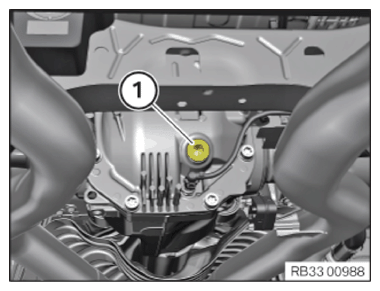

- Release oil drain plug (1).
- Check oil level.
The oil level in the rear axle differential has been adjusted correctly once a small quantity of oil leaks from the opening of the screw plug.
- If necessary, top up final drive transmission oil.
TECHNICAL DATA SPECIFICATION
| Rear differential fluid: Filling capacity overview (all) | ||
| 168LW | 0.75 l | |
| 190AL | 0.8 l | |
| 205AL | 0.8 l | |
| 215LW | 0.9 l | |
| 215LWS | 1.0 l | |
| 225AL | 0.9 l | |
| 225ALS | 1.0 l | |
| 225M | 1.0 l | |
| 235LK | 1.2 l | |
- Rene the screw plug (1).
Parts: Plug
- Screw in the screw plug (1) manually by a few turns and tighten it.
TIGHTENING TORQUE SPECIFICATION
| Screw plug on the rear axle differential | ||
| M22 Replace screw plug with O-ring. |
tightening torque | 60 Nm |
