Attaching the spring strut on the swivel bearing

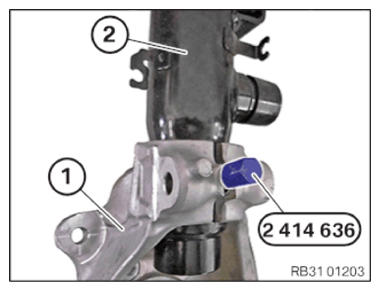

• Spread the swivel bearing (1) with the special tool 2 414 636  .
• Correctly align the positioning pin on the spring strut (2) with the gap on the swivel bearing (1).
• Slide spring strut (2) into swivel bearing (1) up to the stop.
• Remove the special tool 2 414 636  .

  Courtesy of BMW OF NORTH AMERICA, INC.

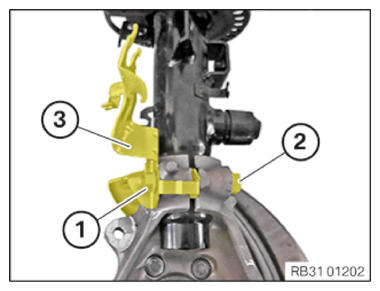

• Position holder (3) on the swivel bearing.
• Replace the screw (2) and the nut (1).

  Parts:  Screw, nut

• Insert screw (2) and guide on the nut (1).
• Tighten down screw (2).

TIGHTENING TORQUE SPECIFICATION

Spring strut to swivel bearing
M10 Replace screw and nut. Tightening via screw.	Tightening torque	60 Nm
	Angle of rotation	180°
