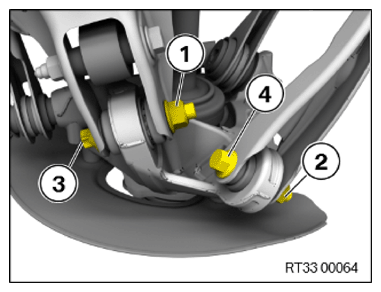

Attaching the camber control arm and trailing arm to the wheel carrier
- Replace the nuts (1) and (2) and the screws (3) and (4).
Parts: Nut and screws
- Position the camber control arm and trailing arm on the wheel carrier.
- Insert screws (3) and (4).
- Tighten nut (1).
TIGHTENING TORQUE SPECIFICATION
| Camber control arm to wheel carrier | ||
| M14 Replace screw and nut. |
Joining torque | 165 Nm |
| Angle of rotation | 90° | |
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
Tighten the screw connection in the NORMAL POSITION .
- Tighten the nut (2) hand-tight.
The screw connection is tightened later in NORMAL POSITION .
