Remove the front folding compartment LED module

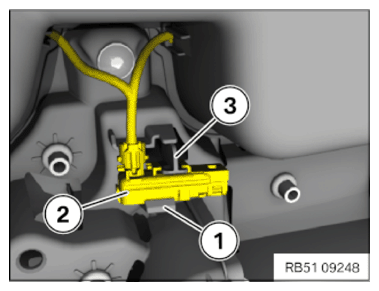

• Release the detent (1) and pull the LED module (2) out of the holder (3).
• Unclip the LED module (2) from the fiber optic cable.
