Remove the entry light in the front door trim panel

NOTE: Schematic diagram is for example purposes.
Some parts may differ in certain details.

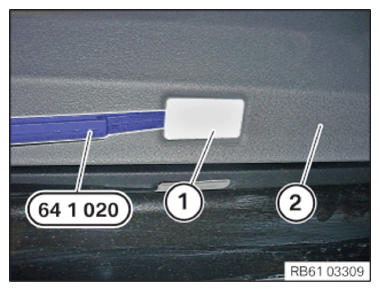

• Remove the entry light (1) from the front door trim panel (2) using special tool 0 493 681 (64 1 020).
• Disconnect the associated plug connection and remove the entry light (1).

Courtesy of BMW OF NORTH AMERICA, INC.
