Remove door pocket
Remove door pocket

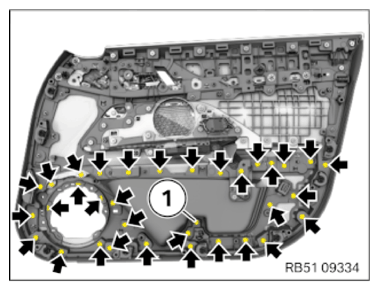

Loosen screw (1).
Carefully drill out the welded connections (arrows) on the door trim panel with the special tool
5 A3C D25.
Courtesy of BMW OF NORTH AMERICA, INC.

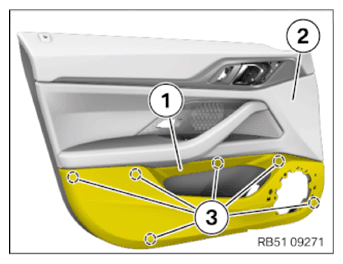

Unclip the door pocket (1) from the detents (3).
Guide the door pocket (1) out of the door trim panel (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
