Partially remove the luggage compartment wheel arch trim panel on the right

Removing the emergency release handle for the tailgate (additional work for US version)

• Loosen the emergency release handle (1) for the tailgate from the holder.
• Detach the Bowden cable (2) and remove the emergency release handle (1) for the tailgate.

Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen the expanding rivet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Press luggage compartment wheel arch trim panel lug (2) on the outer side of the hinge forwards over the stop on the trim (1).
• Feed out the luggage compartment wheel arch trim panel (2) under the sealing lip of the seal for the trunk lid.

Courtesy of BMW OF NORTH AMERICA, INC.

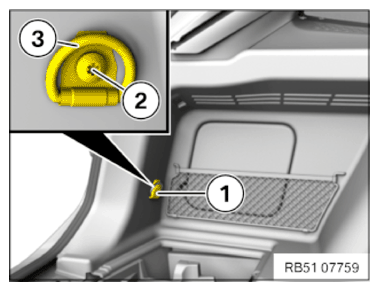

• Unclip the cover (1).
• Release the screw (2) and remove the rear lashing eye (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the emergency release handle for the tailgate (additional work for US version)

• Loosen the emergency release handle (1) for the tailgate from the holder.
• Detach the Bowden cable (2) and remove the emergency release handle (1) for the tailgate.

Courtesy of BMW OF NORTH AMERICA, INC.

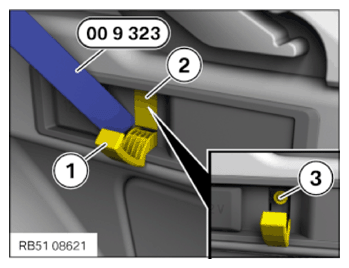

• Fold out multi-function hook.
• Unclip the cover (2) with the special tool 0 490 540 (00 9 323)  . To do this, place a corner of the special tool on the bottom left on the cover (2).
• Loosen screw (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

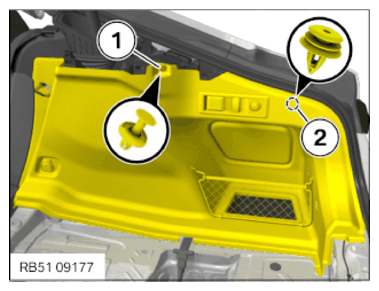

• Release expanding rivet (1).
• Feed out the luggage compartment wheel arch trim panel from the sealing lip of the tailgate seal.
• Release the luggage compartment wheel arch trim panel with the clip (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  The number of connectors on the described component may vary depending on the equipment version.
  If necessary, unlock and disconnect, or connect and lock, all other connectors.

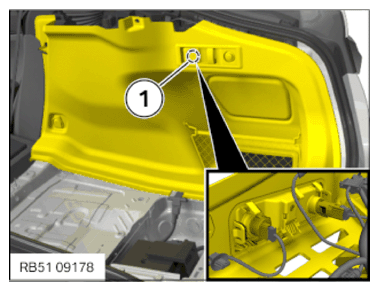

• Swivel the luggage compartment wheel arch trim panel inward.
• Unlock plug connection (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.
