Installing front wheel arch trim panel on the left and right (partially removed)
NOTE:
Description is for left component only. Procedure on the right side is identical.
- Installing the front wheel arch trim panel (partially removed)
NOTE:

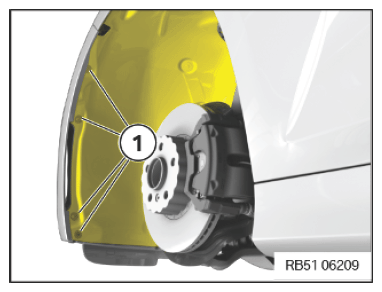

To provide a better overview: Schematic diagram without front wheel.
- Fold back front wheel arch trim panel.
- Tighten down screws (1).
TOOL DESCRIPTION - COMPRISING
| Wheel arch trim panel, front | ||
| Thermoplastic hexagon screw | Tightening torque | 2.6Nm |
