Install the trim in the water channel on the bottom right

Install trim in the bottom water channel

Check

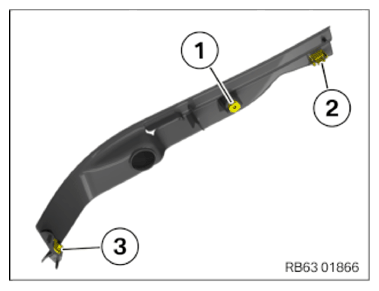

• Check the clip (1) at the trim in the bottom water channel for damage; replace if necessary.
• Check the detents (2) and (3) at the trim in the bottom water channel for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » Detent (2) or (3) is damaged.

  Measure

  • Replace the trim in the bottom water channel.

  Parts:  trim

• Insert trim in the bottom water channel into the guides at the bumper cover and engage with the detent (3).
• Clip in the trim in the bottom water channel with the clip (2) and the detent (1).

Courtesy of BMW OF NORTH AMERICA, INC.
