Installing transmission cross member
- Install the transmission cross member (2) .
- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATION
Transmission cross member to body M8 tightening torque 19 Nm - Release the luggage strap (1) from the transmission.
- Remove the special tools 0 495 498 (23 4 050)and 2 219 012from the transmission
.

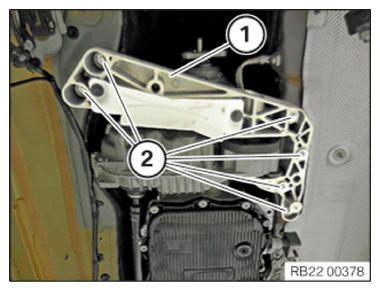

- Install the transmission cross member (1) .
- Tighten down screws (2)
.TIGHTENING TORQUE SPECIFICATION
Transmission cross member to body M8 tightening torque 19 Nm - Release the luggage strap (1) from the transmission.
- Remove the special tools 0 495 498 (23 4 050)and 2 219 012from the transmission
.
