Installing front-end strut on left and right

NOTE: TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the front-end strut

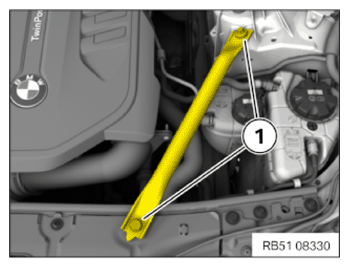

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Tighten the screws (1) .

TIGHTENING TORQUE SPECIFICATION

Front end strut
screw	Tightening torque	56 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
