Release door window at rear
Preliminary work
NOTE:

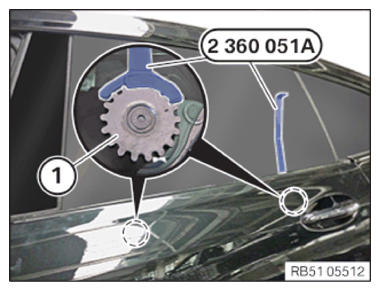

Schematic diagram is for example purposes. Some parts may differ in certain details.
- Release the multi-point screws (1) at the door window glass with the special tool 2 360 051
A by 2 revolutions.
