Body Equipment -- Repair (G22, G23 & G26) (1 Of 3)
>>
51 16 Mirrors, Consoles, Interior Trim
>>
51 16 213 Replacing storage compartment trim (4' Series coupe, convertible, and Gran Coupe sedan)
>>
Removing the front storage compartment trim
Removing the front storage compartment trim

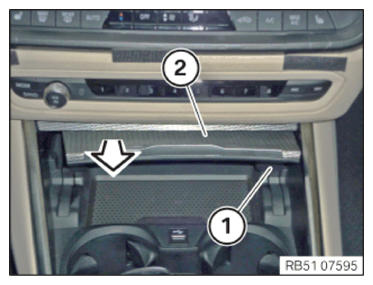

Hold the lower part (1) and pull the storage compartment trim (2) slightly to the rear in arrow direction.
Feed the storage compartment trim (2) out to the top and remove.
Courtesy of BMW OF NORTH AMERICA, INC.
