Installing the storage compartment in the front center console

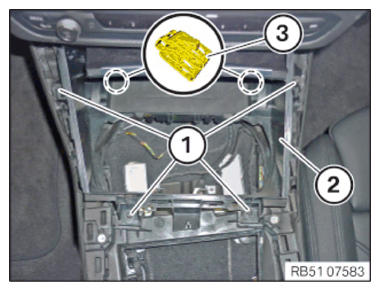

• Install the storage compartment in center console (2) at the front and connect and lock the connectors (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Engage the storage compartment in the front center console (2) at the rear in the clamps (3).
• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATION



  Storage compartment in center console
  Oval-head screw	tightening torque	1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE OPERATING FACILITY IN THE CENTER CONSOLE .
• Refer to INSTALLING THE WIRELESS CHARGING STORAGE .
• Refer to INSTALLING THE DECORATIVE TRIM ON THE LEFT AND RIGHT OF THE CENTER CONSOLE .
• Refer to INSTALLING THE CENTER CONSOLE TRIM .
• Refer to INSTALLING TRIM IN STORAGE COMPARTMENT OF CENTER ARMREST .
• Refer to INSTALLING THE CUP HOLDER .
