Installing Both Tailgate Hinges
NOTE:

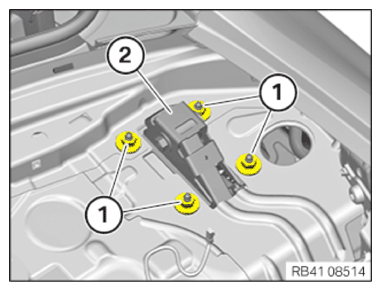

To provide a better overview: Schematic diagram with partially hidden components.
NOTE:
Description is for left component only. Procedure on the right side is identical.
- (2) Place tailgate hinge.
- Tighten nuts (1) .
TIGHTENING TORQUE SPECIFICATION
| Tailgate hinge to body | ||
|---|---|---|
| Nut M8 | tightening torque | 19 Nm |
