Adjusting The Tailgate

Preliminary work

Precondition

The convertible top compartment lid has been adjusted.

Check

Courtesy of BMW OF NORTH AMERICA, INC.

• Check the gap dimensions (arrows) between trunk lid and adjacent components,

Gap dimension between convertible top compartment lid and tailgate
1 Convertible top cover; 2 trunk lid Courtesy of BMW OF NORTH AMERICA, INC.	a	5.0 +1 -1 mm
	b	-0.9 +2.1 -0.4 mm

Gap dimension rear quarter panel to trunk lid
1 rear quarter panel; 2 trunk lid Courtesy of BMW OF NORTH AMERICA, INC.	a	3.5 +1.2 -1.2 mm
	b	0 +1.4 -1.4 mm

Gap dimension trunk lid to rear bumper panel
1 trunk lid; 2 rear bumper panel Courtesy of BMW OF NORTH AMERICA, INC.	a	5.1 +1.5 -1.5 mm

Result

» The gap dimensions between the tailgate and the adjoining components do not correspond to the specifications.

Measure

• Adjust the tailgate on the tailgate hinge.

Remove tailgate trim panel

• Open holder (1).
• Remove the warning triangle (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

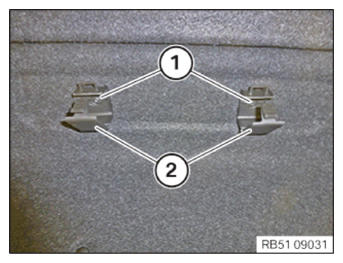

• Release the screws (1) and remove the holders (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

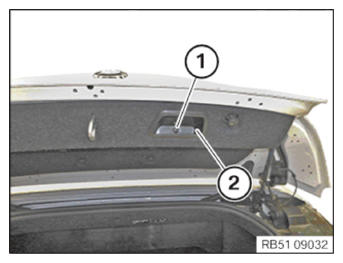

• Release the screw (1) and remove the handle recess (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

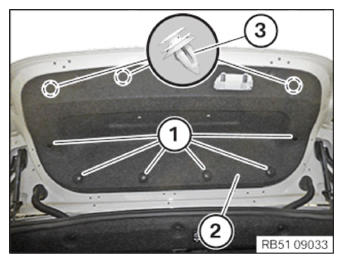

• Release the expanding rivet (1).
• Release and remove tailgate trim panel (2) at the clips (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove striker for the tailgate latch

• Loosen screws (1).
• Remove striker for the tailgate latch (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting the tailgate

Precondition

Convertible top compartment lid is adjusted.

• Release the nut (1) and remove the ground cable (2).
• Slacken the screws (3) on the left and right on the tailgate hinge until the tailgate can be shifted.
• Move the tailgate in a longitudinal direction and sideways until the tailgate has the specified gap dimensions.
• Tighten the screws (3) on the left and right on the tailgate hinge.
  TIGHTENING TORQUE SPECIFICATION



  Tailgate hinge on trunk lid
  Hexagon screw, M8 x 18	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the ground cable (2) on the hinge and tighten the nut (1).
  TIGHTENING TORQUE SPECIFICATION



  Ground cable to tailgate hinge
  Nut M5	Tightening torque	4.5 Nm

• Slacken the screws (1) on the left and right on the tailgate hinge until the tailgate can be shifted.
• Shift the height of the tailgate until the tailgate has the specified gap dimensions.
• Tighten the screws (1) on the left and right on the tailgate hinge.

Hinge bracket to hinge flap
M8 screw	Tightening torque	12 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Install striker for the tailgate latch

• Position striker for the tailgate latch (2) and tighten the screws (1).

Striker to rear lid
Hexagon screw M8x20	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TAILGATE TRIM PANEL .
• Refer to ADJUST THE LOWER PART OF THE TAILGATE LOCK LOWER SECTION .
