Removing The Rear Left Side Panel

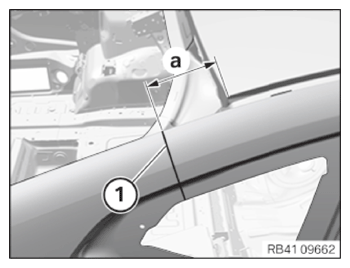

- Mark the separating cut (1) on the D-pillar according to the dimension (a) and make the cut. Disconnect only the outer panel.
Dimension (a) = 130 mm from the corner of the roof outer skin
- Compare position of severance cut with reinforcement plate.NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Determination of separating cut using a template - Determine position of the separating cut in addition to the dimensions with the aid of a template (1).

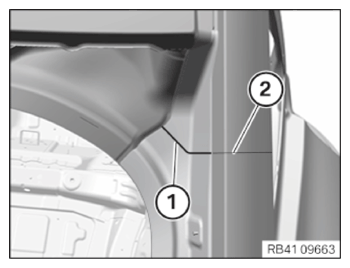

- Carry out the separating cut (1) in the water channel as shown. Disconnect only the outer panel.
(2) = Separating cut on the D-pillar

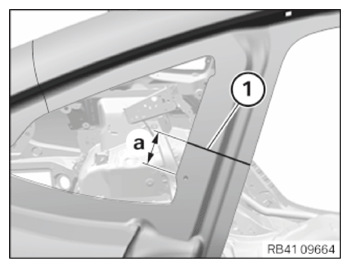

- Mark the separating cut (1) on the C-pillar according to the dimension (a) and make the cut. Disconnect only the outer panel.
Dimension (a) = 45 mm
- Compare position of severance cut with reinforcement plate.

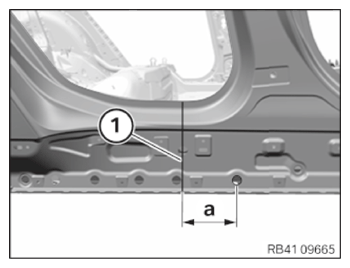

- Mark the separating cut (1) on the door sill in accordance with dimension (a) and make the cut. Disconnect only the outer panel.
Dimension (a) = 145 mm from the center point of the hole with Ø 20 mm
- Compare position of severance cut with reinforcement plate.

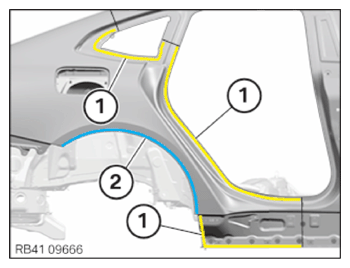

- Release the welded connections in areas (1).NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Loosening bonded folded joints - Detach the folded bonded joints in area (2).

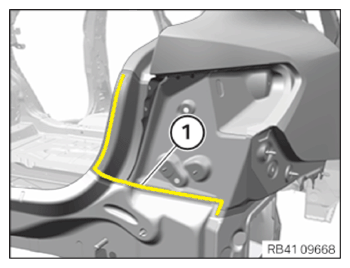

- Release the welded connections in areas (1).

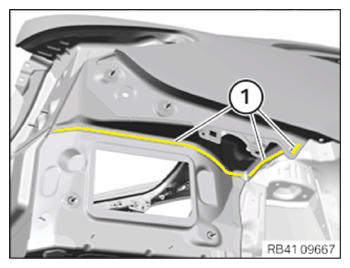

- Open the welded connections in area (1).

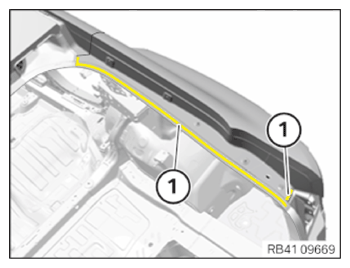

- Release the welded connections in areas (1).

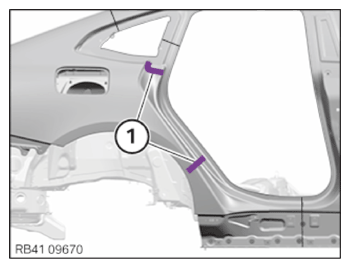

- Release and remove the side panel from cavity sealings (1).
