Installing The Rear Left Side Panel

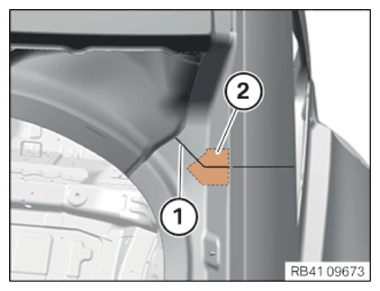

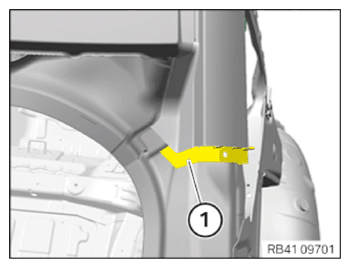

• Install reinforcement plate (1) and tack by welding.

  Courtesy of BMW OF NORTH AMERICA, INC.

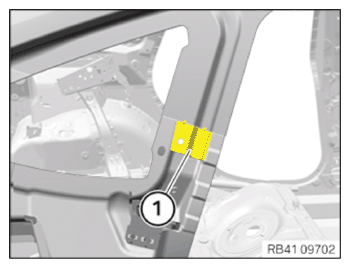

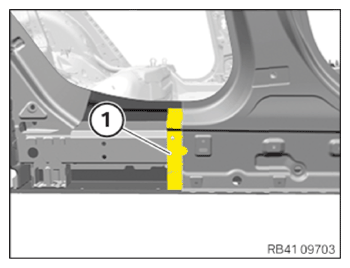

• Install reinforcement plate (1) (universal) and tack by welding.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Pre-clean the bonding surfaces of the reinforcement plate (1) and the body with solvent cleaner R2.
  CONSUMABLE SPECIFICATION



  Cleaning agent R2

  500 ml

  83190417324

• Clean the bonding surfaces of the reinforcement plate and the body with solvent cleaner R1.
  CONSUMABLE SPECIFICATION



  Cleaning agent R1

  100 ml, Bottle

  83192211217

  Courtesy of BMW OF NORTH AMERICA, INC.

• Apply adhesive K5 to the reinforcement plate (1).
  ADHESIVE SPECIFICATION



  Body adhesive K5

  195 ml

  83195A59935

• Install reinforcement plate (1).
• Pre-clean bonding surfaces of reinforcement plate (1) and the body with cleaning agent R2.
• Clean the bonding surfaces of the reinforcement plate (1) and the body using R1 solvent cleaner.
• Apply adhesive on to the reinforcement plate (1).
• Install reinforcement plate (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

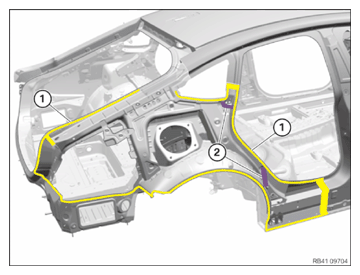

• Pre-clean the bonding surfaces (1) on the vehicle and new part.
• Pre-clean the bonding surfaces (1) on the vehicle and new part.
• Apply adhesive to bonding surfaces (1).
  NOTE: TECHNICAL INFORMATION
  For additional information see: 41 00...
  Installation of cavity sealing (expanded)
• Apply sealant D2 on the cavity sealings (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  CONSUMABLE SPECIFICATION



  Sealant D2

  290 ml

  83425A547B9

• Install the side panel with the help of a second person.

  During installation, ensure that sufficient adhesive has been applied to all bonding surfaces.

• Align the side panel in the areas of the separating cut and attach it using locking pliers.
• Tighten the nuts on the reinforcement plates with plastic nuts.
  CONSUMABLE SPECIFICATION



  Plastic nut

  Ø18 mm

  51161943122

  CONSUMABLE SPECIFICATION



  Plastic nut

  Ø22 mm

  07147169847

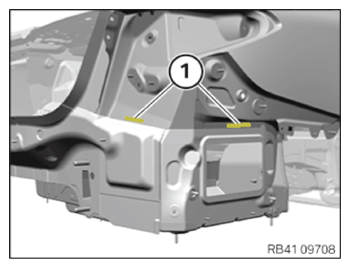

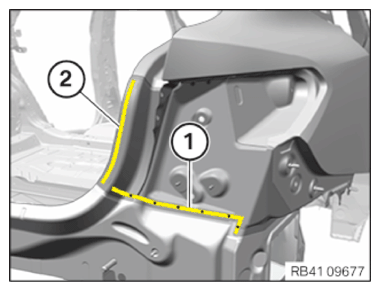

• Rivet the side panel in area (1) with blind rivets.
  CONSUMABLE SPECIFICATION



  Blind rivet N3  Ø 4 mm; clamping area 1-3 mm

  83190301421

• Rivet the side panel in areas (2) and (3) with punch rivets.

  Area	Description	Number
  2	N4	1
  3	N4	2

  Courtesy of BMW OF NORTH AMERICA, INC.

  CONSUMABLE SPECIFICATION



  Punch rivet N4  Ø 3 mm; 4 mm long

  83192457307

• Rivet the side panel in area (1) with blind rivets N3.
• In area (4), rivet the side panel with 5 x N4 punch rivets.

  Courtesy of BMW OF NORTH AMERICA, INC.

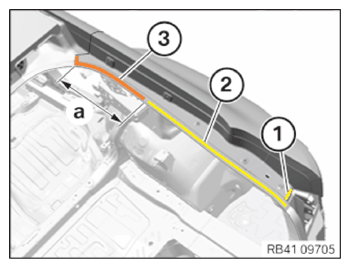

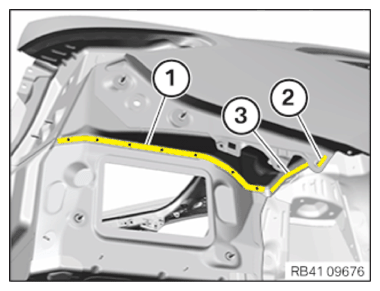

• Rivet the side panel in the area (1) with the blind rivet N6.
  CONSUMABLE SPECIFICATION



  Blind rivet N6  Ø 4 mm; clamping area 3-5 mm

  83192158655

• Rivet the side panel in the area (2) to dimension a = 270 mm with 7 x N5 punch rivets.
• N.B.: Weld the welding area (3) after completing the bonding.

  Courtesy of BMW OF NORTH AMERICA, INC.

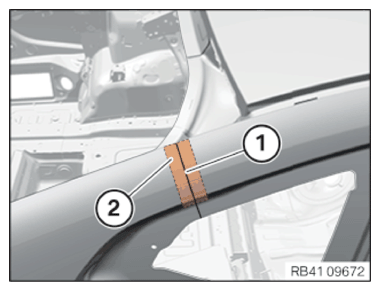

• Attach the new part, separating cut (1) and the reinforcement plate (2) by welding.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Attach the new part, separating cut (1) and the reinforcement plate (2) (universal) by welding.

  Courtesy of BMW OF NORTH AMERICA, INC.

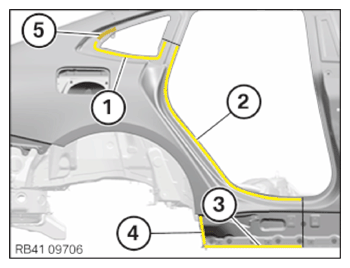

• Rivet the side panel in areas (1) to (4) with punch rivets.

  Area	Description	Number
  1	N5	6
  2	N5	14
  3	N4	6
  4	N4	3

  CONSUMABLE SPECIFICATION



  Punch rivet N4  Ø 3 mm; 4 mm long

  83192457307

  Courtesy of BMW OF NORTH AMERICA, INC.

  CONSUMABLE SPECIFICATION



  Punch rivet N5  Ø 5 mm; 5 mm long

  83192158079

• N.B.: Finish the welding area (5) after ending the bonding work.
• Also apply adhesive (2) to the outer wheel arch section (3).

  (1) = side panel wheel arch

  Courtesy of BMW OF NORTH AMERICA, INC.

• Flange the edge of wheel arch (3) of the side panel flush to the outer wheel arch section.
• Do not bead with sharp edges as the crimping edge could tear.
• Fill crimping edge fully with adhesive.

  Dimension (a) = 5 mm

  1. adhesive
  2. rear quarter panel
• Seal the new part with sealant in the same way as for standard production.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Seal with sealant in the area (3) according to the standard.

  CONSUMABLE SPECIFICATION



  Sealant D2

  290 ml

  83425A547B9

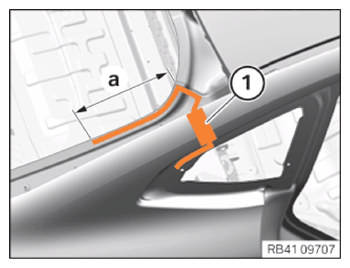

• Complete the welding work (1). Dimension a = 270 mm.

  Avoid excessive heat input on the adjacent adhesive areas.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the EMC screw

• Drill the hole with a diameter of 4.2 mm after the adhesive completely hardens.
• Screw in the EMC screw.
  CONSUMABLE SPECIFICATION



  screw  EMC screw, SF Plus, M5x15

  83190301639

• Seal the EMC screw with the sealant.

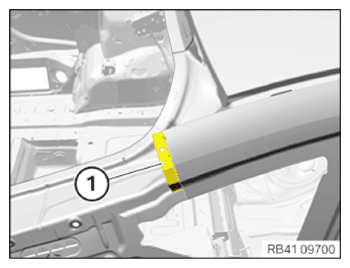

• Install 2 EMC screws in areas (1) after the adhesive has hardened.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
