Prepare New Part

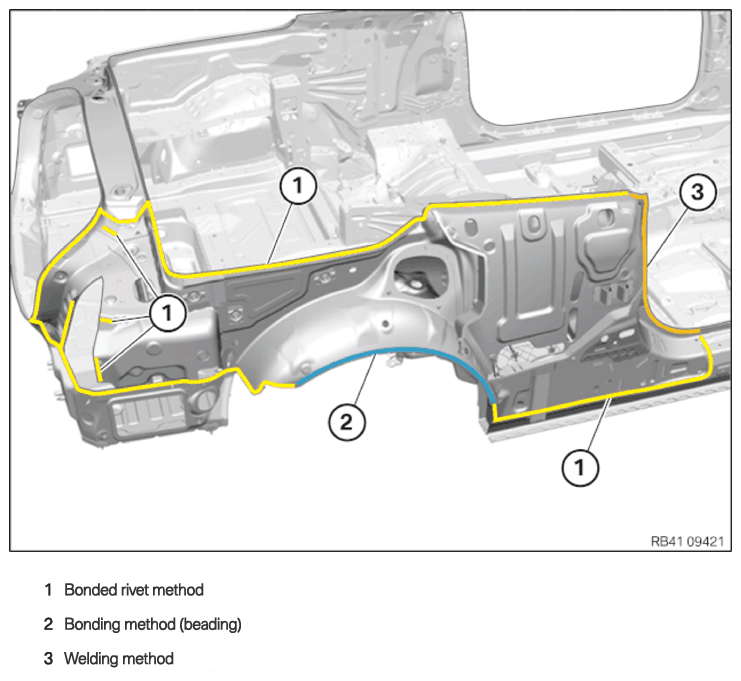

Joining method

Courtesy of BMW OF NORTH AMERICA, INC.

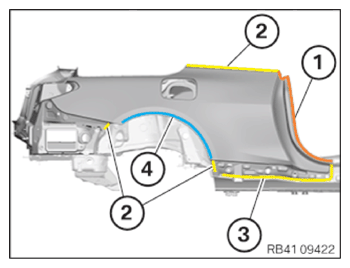

• Prepare the area (1) for joining by welding.
• Prepare areas (2) for bonded riveting (with punch rivets).
• In area (3), make 8 x bores of Ø 4.2 mm for the blind rivets.
• Prepare the area (4) for bonding (by beading).

  Courtesy of BMW OF NORTH AMERICA, INC.

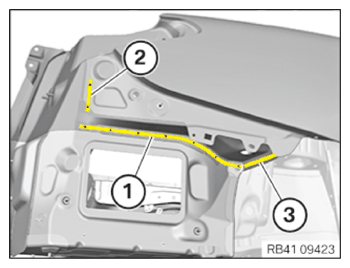

  In areas (1) and (2), make bores of Ø 4.2 mm for the blind rivets.

  Area	Number
  1	7
  2	2

• Prepare the area (3) for bonded riveting (with punch rivets).

  Courtesy of BMW OF NORTH AMERICA, INC.

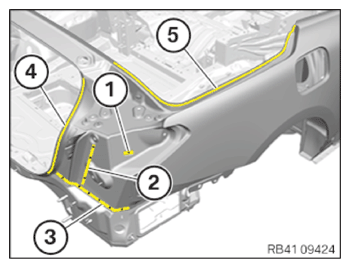

• In areas (1) to (3), make bores of Ø 4.2 mm for the blind rivets.

  Area	Number
  1	1
  2	3
  3	6

• Prepare areas (4) and (5) for joining using the bonded rivet method (with punch rivets).

  Courtesy of BMW OF NORTH AMERICA, INC.

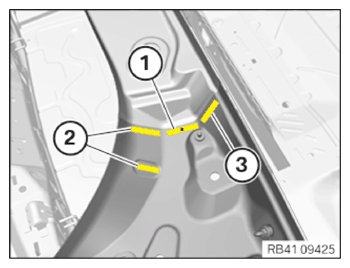

• In area (1), make one bore of Ø 4.2 mm for a blind rivet.
• Prepare areas (2) for joining by riveting with punch rivets.
• Prepare area (3) for joining using the bonded rivet method.
• Remove new part and deburr holes.
