Supplying The New Parts Required
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 2.
For additional information see: 41 00... Repair method for repair stage 2
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work

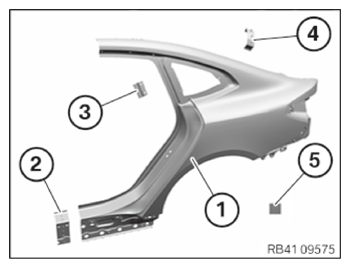

- Prepare the following new parts (see Electronic Parts Catalog [EPC]):
Rear wall (1)
Reinforcement plate, door sill (2)
Reinforcement plate, C-pillar (3)
Reinforcement plate, D-pillar (4)
Universal reinforcement plate (5)
Plastic nut
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Overview of consumables in Electronic Parts Catalog - Supply the following consumables:
| Material | Quantity |
|---|---|
| Adhesive K5 (195 ml) | 1 |
| Adhesive K5 (50 ml) | 1 |
| Blind rivet N3 | 15 |
| Blind rivet N6 | 5 |
| Punch rivet N4 | 20 |
| Punch rivet N5 | 30 |
| EMC screw | 2 |
| Cleaning agent R1 | 1 |
| Cleaning agent R2 | 1 |
| Cavity protection wax remover | 1 |
| Sealing compound D1 | 1 |
| Sealing compound D2 | 1 |
