Installing The Rear Left Side Panel

• Install and tack reinforcement plates (welding method) for D-pillar and water channel.
• Apply adhesive to the bonding surfaces.
  ADHESIVE SPECIFICATION



  Body adhesive K5

  195 ml

  83195A59935

  NOTE: TECHNICAL INFORMATION
  For additional information see: 41 00...
  Installation of cavity sealing (expanded)
• Apply sealant onto the cavity sealings.
  CONSUMABLE SPECIFICATION



  Sealant D2

  290 ml

  83425A547B9

• Install the side panel and reinforcement plates with the help of a second person.

  During installation, ensure that sufficient adhesive has been applied to all bonding surfaces.

• Align the side panel in the areas of the separating cut and attach it using locking pliers.
• Tighten the plastic nuts on the reinforcement plates.
  CONSUMABLE SPECIFICATION



  Plastic nut

  Ø18 mm

  51161943122

  CONSUMABLE SPECIFICATION



  Plastic nut

  Ø22 mm

  07147169847

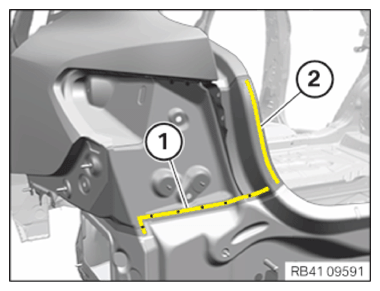

• Rivet the side panel in area (1) with blind rivets.
  CONSUMABLE SPECIFICATION



  Blind rivet N3  Ø 4 mm; clamping area 1-3 mm

  83190301421

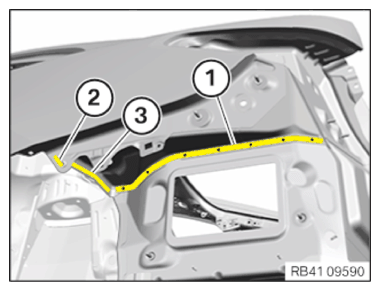

• Install punch rivets in areas (2) and (3).

  Area	Description	Number
  2	N4	1
  3	N4	2

  Courtesy of BMW OF NORTH AMERICA, INC.

  CONSUMABLE SPECIFICATION



  Punch rivet N4  Ø 3 mm; 4 mm long

  83192457307

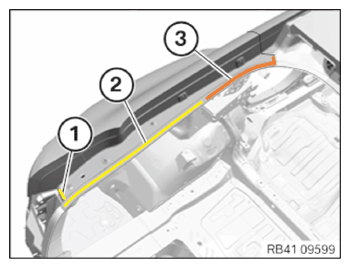

• Rivet the side panel in area (1) with blind rivets N3.
• In the area (2), 5 x punch rivets N4.

  Courtesy of BMW OF NORTH AMERICA, INC.

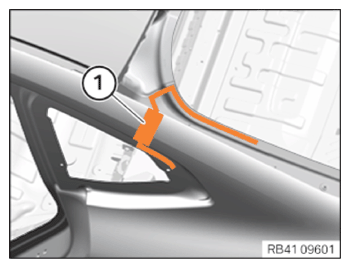

• Install a blind rivet N6 in area (1).
  CONSUMABLE SPECIFICATION



  Blind rivet N6  Ø 4 mm; clamping area 3-5 mm

  83192158655

• Install 7 x punch rivet N5 in area (2).

  Area (3) = welding area reinforcement D-pillar.

  Courtesy of BMW OF NORTH AMERICA, INC.

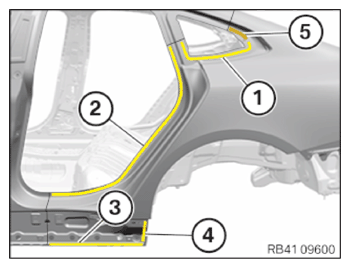

• Install punch rivets in areas (1) to (4).

  Area (5) = welding area reinforcement D-pillar.

  Area	Description	Number
  1	N5	6
  2	N5	14
  3	N4	6
  4	N4	3

  CONSUMABLE SPECIFICATION



  Punch rivet N5  Ø 5 mm; 5 mm long

  83192158079

  Courtesy of BMW OF NORTH AMERICA, INC.

• Also apply adhesive (2) to the outer wheel arch section (3).

  (1) = side panel wheel arch

  Courtesy of BMW OF NORTH AMERICA, INC.

• Flange the edge of wheel arch (3) of the side panel flush to the outer wheel arch section.
• Do not bead with sharp edges as the crimping edge could tear.
• Fill crimping edge fully with adhesive.

  Dimension (a) = 5 mm

  1. adhesive
  2. rear quarter panel
• Seal the new part with sealant in the same way as for standard production.

  Seal with sealant in the area (3) according to the standard.

  Courtesy of BMW OF NORTH AMERICA, INC.

  CONSUMABLE SPECIFICATION



  Sealant D2

  290 ml

  83425A547B9

• Weld the D-pillar (1) and reinforcement D-pillar.

  Avoid excessive heat input on the adjacent adhesive areas.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the EMC screw

• Drill the hole with a diameter of 4.2 mm after the adhesive completely hardens.
• Screw in the EMC screw.
  CONSUMABLE SPECIFICATION



  screw  EMC screw, SF Plus, M5x15

  83190301639

• Seal the EMC screw with the sealant.

• Install 2 EMC screws in areas (1) after the adhesive has hardened.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
