Prepare New Part

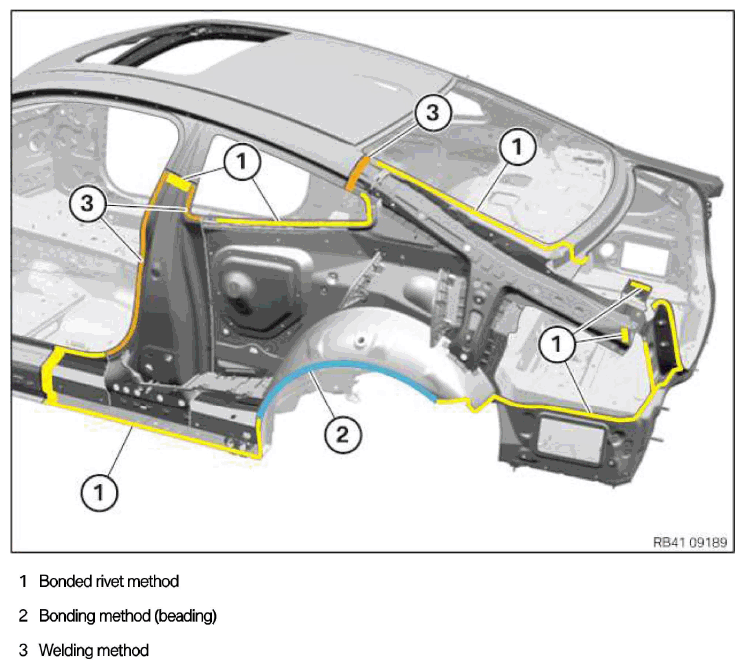

Joining method

Courtesy of BMW OF NORTH AMERICA, INC.

• Mark and make the separating cuts on the new part in accordance with the separating cuts on the vehicle.

Courtesy of BMW OF NORTH AMERICA, INC.

• Prepare the reinforcement plates at separating cuts for the welded connection and the bonded connection.

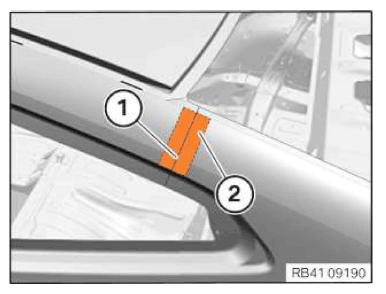

• Adapt reinforcement plate (1) and the new part to the separating cut (2) on the C-pillar.
• Prepare separating cut (1) and reinforcement plate (2) for joining by welding.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Prepare separating cut (1) and reinforcement plate (2) for bonding.

• Prepare separating cut (1) and reinforcement plate (2) for bonding.
• In the areas (1) and (2): Drill 4.2 mm bores for blind rivets.

  Area	Number of bores
  1	8
  2	1

• Prepare the joints in areas (3) and (4) using the bonded rivet method (punch rivets).
• In the areas (1) to (3): Drill 4.2 mm bores for blind rivets.

  Area	Number of bores
  1	5
  2	3
  3	1

• Prepare the area (4) for joining using the bonded rivet method (punch rivets).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

• Prepare the area (1) for joining using the bonded rivet method (punch rivets).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Prepare areas (1) for joining by welding.
• Prepare areas (2) for joining using the bonded rivet method (with punch rivets).
• Prepare the area (3) for bonding (using beeding).
• Remove new part and deburr holes.
