Supplying The New Parts Required
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 2.
For additional information see: 41 00... Repair method for repair stage 2
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
- Prepare the following new parts (see Electronic Parts Catalog [EPC]):

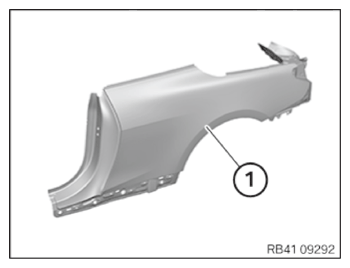

Rear wall (1)
Plastic nut
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Overview of consumables in Electronic Parts Catalog - Supply the following consumables:
| Material | Quantity |
|---|---|
| Adhesive K5 (195 ml) | 1 |
| Adhesive K5 (50 ml) | 1 |
| Blind rivet N3 | 20 |
| Blind rivet N6 | 10 |
| Punch rivet N4 | 25 |
| Punch rivet N5 | 15 |
| EMC screw | 2 |
| Cleaning agent R1 | 1 |
| Cleaning agent R2 | 1 |
| Cavity protection wax remover | 1 |
| Sealing compound D1 | |
| Sealing compound D2 |
