Removing The Rear Left Side Panel

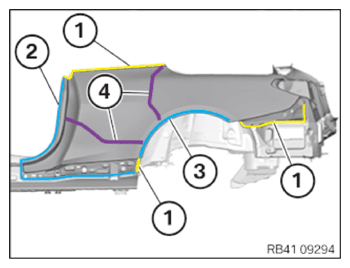

Release welded connections in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

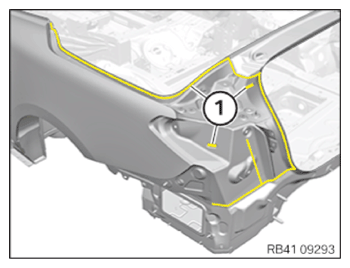

Release welded connections in areas (1).
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Releasing bonded connections
Release the spot-welded adhesive joints in area (2).
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Loosening bonded folded joints
Release folded bonded joints in area (3).
Release and remove the side panel from cavity sealings (4).

Courtesy of BMW OF NORTH AMERICA, INC.
