Installing The Rear Left Side Panel

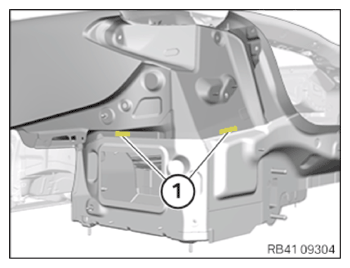

• Preclean the bonding surfaces (1) on the vehicle.
  CONSUMABLE SPECIFICATION



  Cleaning agent R2

  500 ml

  83190417324

• Clean the bonding surfaces (1) on the vehicle and on the new part.
  CONSUMABLE SPECIFICATION



  Cleaning agent R1

  100 ml, Bottle

  83192211217

  Courtesy of BMW OF NORTH AMERICA, INC.

• Apply adhesive on the bonding surfaces (1).
  ADHESIVE SPECIFICATION



  Body adhesive K5

  50 ml

  83192158654

  NOTE: TECHNICAL INFORMATION
  For additional information see: 41 00...
  Installation of cavity sealing (expanded)

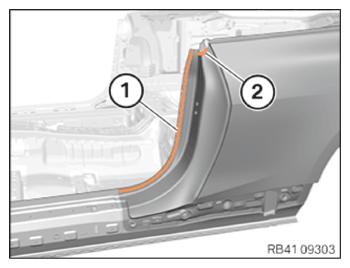

• Apply sealant to the cavity sealings (2).
  CONSUMABLE SPECIFICATION



  Sealant D2

  290 ml

  83425A547B9

• Install and locate side panel with a second person.
• During installation, ensure that sufficient adhesive has been applied to all bonding surfaces.
• While attaching, ensure that all the blind rivet holes on new part and body are aligned.

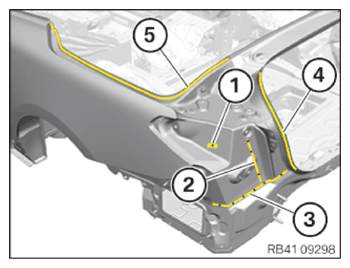

• Rivet side panel in areas (1) to (4) with blind rivets and punch rivets.

  Area	Description	Number
  1	N6	9
  2	N4	9
  3	N5	3
  4	N4	1

  Courtesy of BMW OF NORTH AMERICA, INC.

  CONSUMABLE SPECIFICATION



  Blind rivet N6  Ø 4 mm; clamping area 3-5 mm

  83192158655

  CONSUMABLE SPECIFICATION



  Punch rivet N4  Ø 3 mm; 4 mm long

  83192457307

  CONSUMABLE SPECIFICATION



  Punch rivet N5  Ø 5 mm; 5 mm long

  83192158079

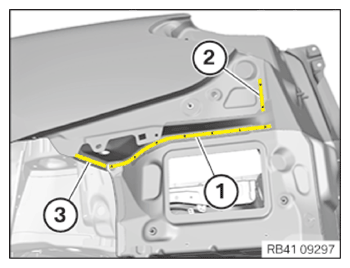

• Rivet the side panel in the areas (1) and (2) with blind rivets.
  CONSUMABLE SPECIFICATION



  Blind rivet N3  Ø 4 mm; clamping area 1-3 mm

  83190301421

• In the area (3), install 2 x punch rivets N4.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Rivet the side panel in the areas (1) to (3) with blind rivets N3.
• Rivet the side panel in the areas (4) and (5) with punch rivets.

  Area	Description	Number
  4	N5	10
  5	N4	12

  Courtesy of BMW OF NORTH AMERICA, INC.

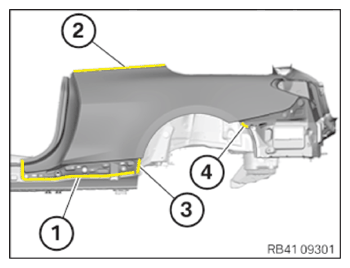

• Rivet the side panel in the area (1) with blind rivets N3.
• Install a punch rivet N5 each in the areas (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Also apply adhesive (2) to the outer wheel arch section (3).

  (1) = side panel wheel arch

  Courtesy of BMW OF NORTH AMERICA, INC.

• Flange the edge of wheel arch (3) of the side panel flush to the outer wheel arch section.
• Do not create sharp edges when flanging because the crimping edge may otherwise begin to tear.
• Fill crimping edge fully with adhesive.

  Dimension (a) = 5 mm

  1. adhesive
  2. rear quarter panel
• Seal the new part with sealant in the same way as for standard production.

  Seal with sealant in the area (3) according to the standard.

  Courtesy of BMW OF NORTH AMERICA, INC.

  CONSUMABLE SPECIFICATION



  Sealant D2

  290 ml

  83425A547B9

• Weld the side panel in the areas (1) and (2).

  Avoid excessive heat input on the adjacent adhesive areas.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the EMC screw

• Drill the hole with a diameter of 4.2 mm after the adhesive completely hardens.
• Screw in the EMC screw.
  CONSUMABLE SPECIFICATION



  screw  EMC screw, SF Plus, M5x15

  83190301639

• Seal the EMC screw with the sealant.

• After the adhesive has hardened, install 2 EMC screws in the areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
